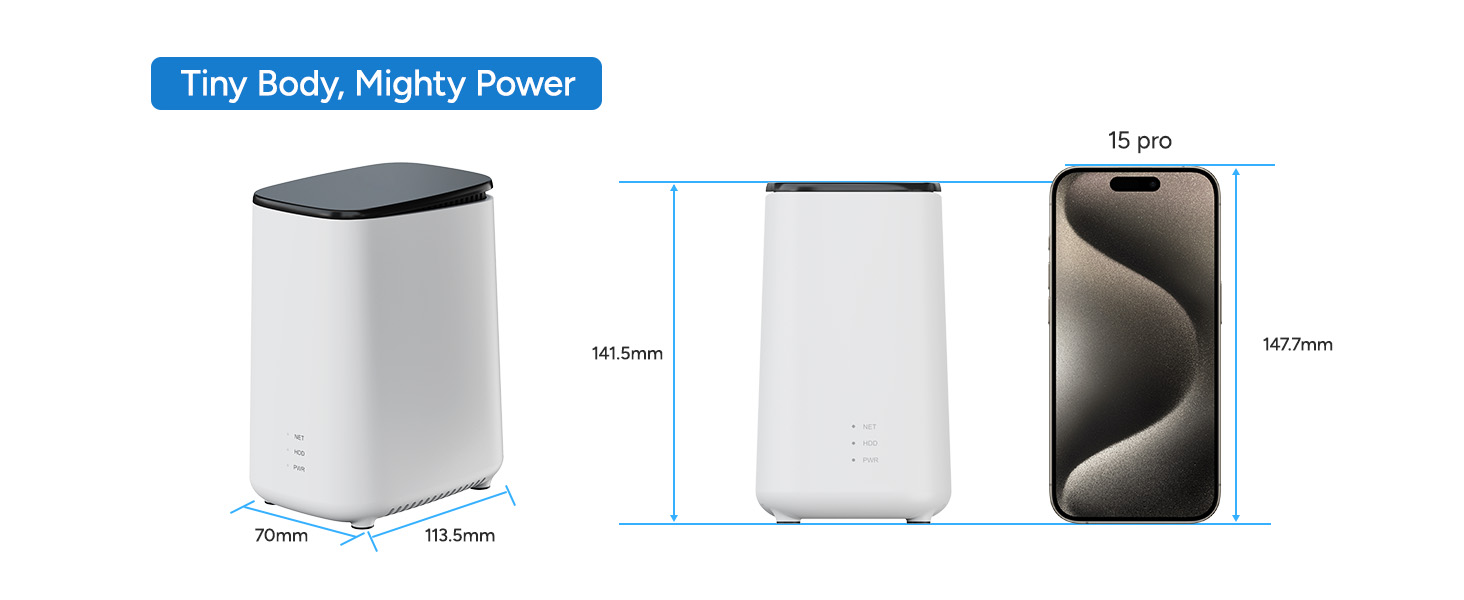

| ◆ Product Dimension | 113.5(L)*70(W)*141.5(H) mm |
| ◆ Net Weight | TBD |
| ◆ Power Cable Length | 1.5m |
| ◆ Mouse Cable Length | 1m |
| ◆ Housing Material | TBD |
| ◆ Housing Color | White |
| ◆ Ingress Protection(IP) | IP20 |
| ◆ Working Temperature | -20℃ ~ 50℃ (no charge below 0 degrees) |
| ◆ Working Humidity | 20%RH ~ 90%RH (no condensation) |
| ◆ Network | Wi-Fi Station and AP+1000Mbps Ethernet |
| ◆ Storage | SSD and TF card |
| ◆ Display | HDMI 1.4b, up to 4K @60Hz |
| ◆ Flash | 16MB Nor flash |
| ◆ HDMI Output | 1 ch, resolution: 1280×720@60Hz / 1280×1024@60Hz / 1920×1080@60Hz / 4K@60Hz |
| ◆ Network Interface | 1 ch RJ45 10/100/1000Mbps Ethernet interface |
| ◆ Network Protocol | IPv4 / DHCP / NTP / ONVIF |
| ◆ USB | 2pcs (one is for mouse using, another one is for firmware upgrading and downloading) |
| ◆ SSD Storage | 1 Sata, Max 2TB |
| ◆ TF Card | Max 512GB |
| ◆ WiFi Camera Types | Battery-powered camera / Line-in power camera / Video Doorbell |
| ◆ Max Number of Connection | 10 ch |
| ◆ WiFi to Router band | 2.4 GHz, Station mode |
| ◆ WiFi to Camera band | 2.4 GHz, AP mode |
| ◆ Max Transmission Speed to Router | 72.2Mbps |
| ◆ Max Transmission Speed to Cameras | 300Mbps |
| ◆ Transmission Distance | 200m(4 channels), 150m(10 channels) |
