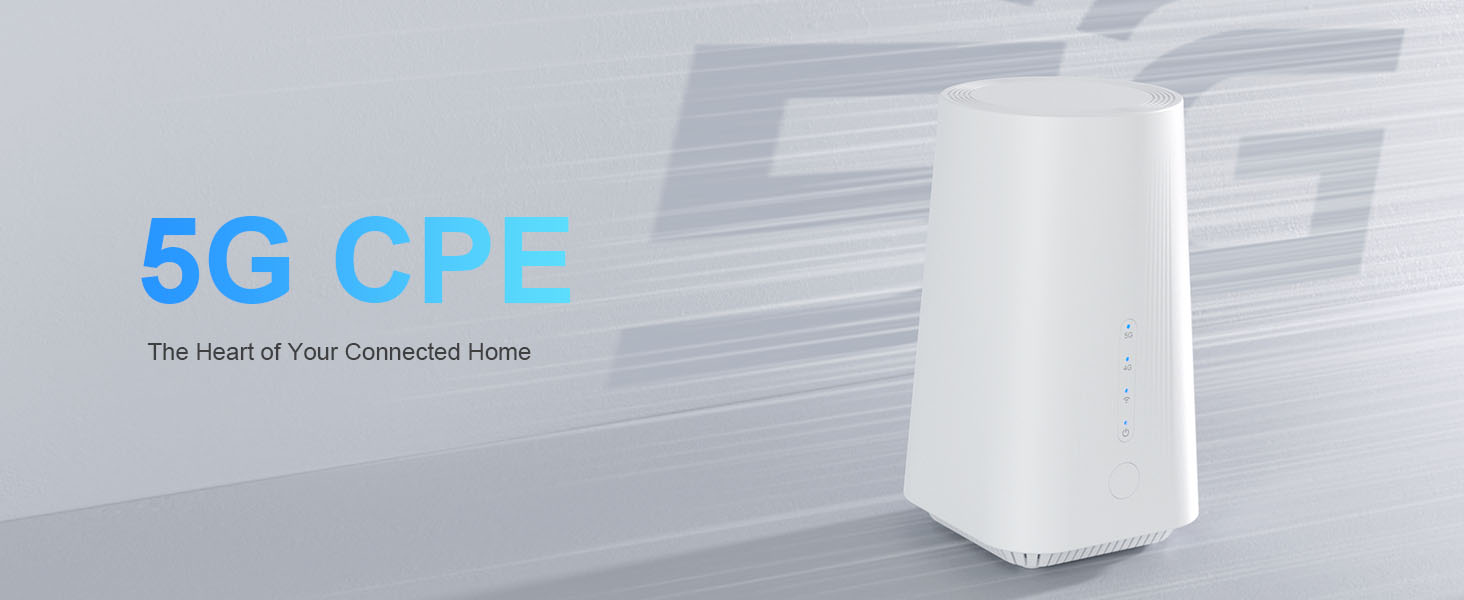

Venz 5G CPE AX3000 WiFi 6 Mesh Unit for Whole Home Coverage

System：
BB Chipset: RG500L-EU
Memory: Option
Ethernet switch controller: MT7531AE
Wi-Fi Chipset:
MT7915AN+MT7975AN(5G),
MT7915AN+MT7975N(2.4G)

Interfaces:
Receive Diversity: Support
Antenna Port: external Antenna*2
USIM/SIM: Nano-SIM

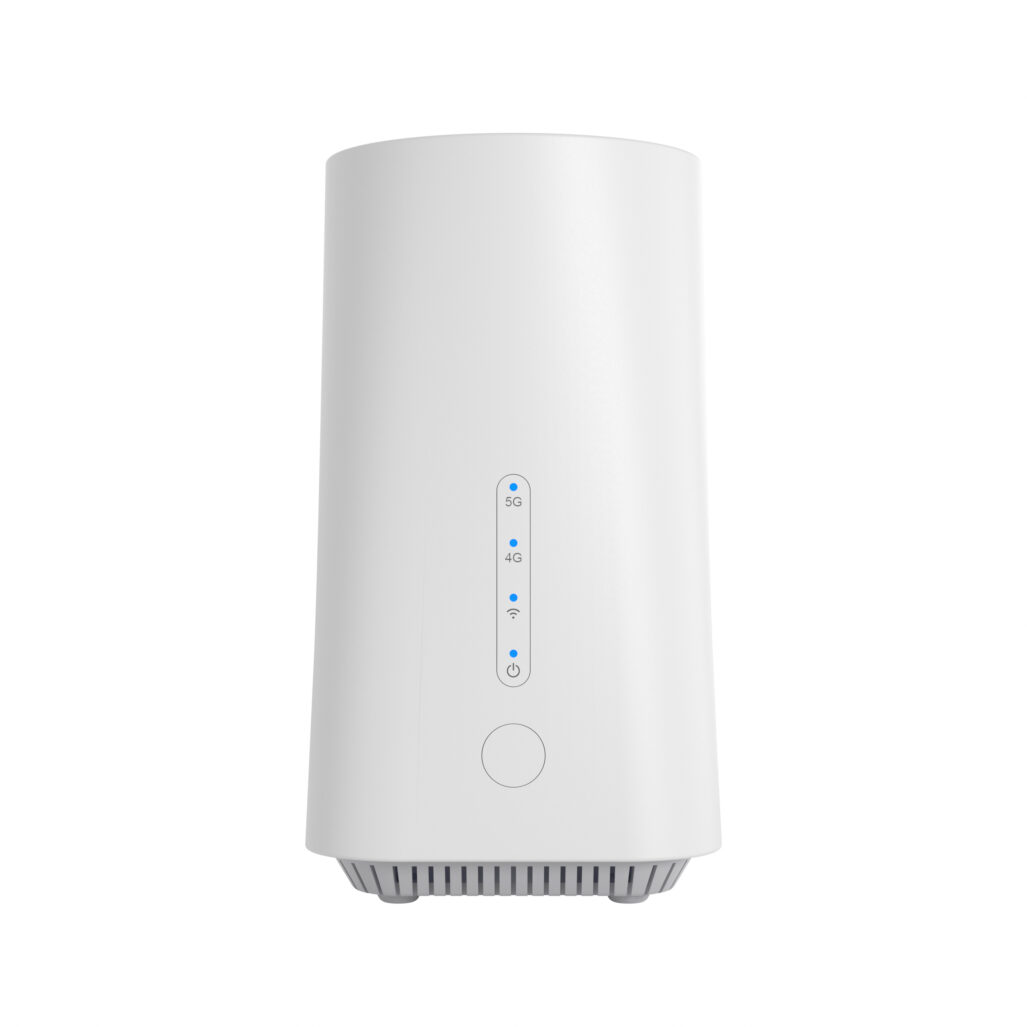

LED: Power indicator*1, WIFI indicator*1, 5G network indicator*1, 4G network indicator*1
USB Port: Type C 2.0
Buttons: RESET, POWER,WPS
RJ45:
1* 1000Mbps WANLAN
1* 1000Mbps LAN
Phone Interface: 1 x RJ11 port(option)

POWER:
Adapter 12V/2A
Power Consumption < 24W

Air Interface
Technical Standard: 5G NR Sub-6GHz, FDD-LTE, TDD-LTE,WCDMA
Frequency Band:
[5G NR]:
FDD: N1/N3/N5/N7/N8/N20/N28
TDD:N38/N40/N41/N71/N77/N78

[LTE]:
FDD:B1/B3/B5/B7/B8/B20/B28/B32/B71
TDD: B38/B40/B41/B42/B43

[WCDMA]
B1/B5/B8

MIMO
LTE :DL 4 × 4 MIMO
UL 2 × 2 MIMO
DL 4 × 4 MIMO

NSA: 3.74 Gbps (DL)/ 1.46 Gbps 6(UL)
SA: 4.67 Gbps (DL)/ 1.25 Gbps (UL)
LTE:1.6 Gbps (DL)/ 211 Mbps (UL)
DC-HSDPA: 42 Mbps
HSUPA: 5.76 Mbps
WCDMA: 384 kbps (DL)/ 384 kbps (UL)

Wi-Fi
WIFI Protocol:
Support 5GHz DFS and SM
Support Wi-Fi 6 IEEE802.11 a/b/g/n/ac/ax;
WIFI Frequency Band: 2.4GHz&5GHz
WIFI Speed rate: 3600Mbps
Wi-Fi Antenna: Internal Antenna:4T4R

Function
SW Update: Local Update, FOTA、TR069
Wi-Fi Mode: AP mode
SMS: Support
IPV4/IPV6: Support
Firewall: Mac/IP address filter, Port forwarding, Wi-Fi Black/White list
Data Statistics: Support
VPN Pass Through: PP2P/L2TP/IPSec
SNTP: Support
DMZ: Support
HTTP/HTTPS: Support
TR069: Support
According to USIM / Automatic APN Matching: Support
